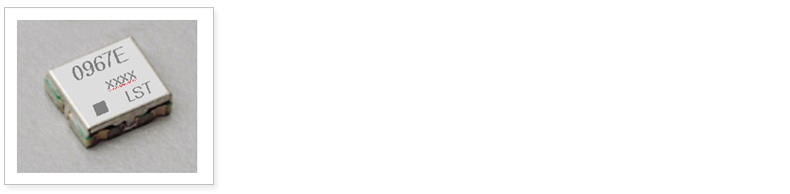

VCO (Voltage Controlled Oscillator)

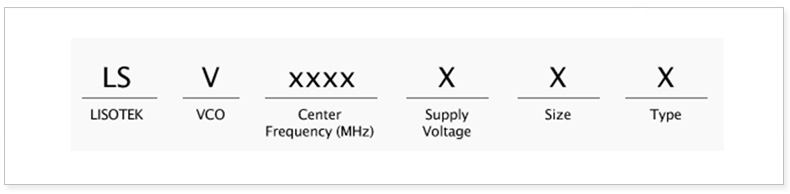

Construction of Part NO.
Specifications
| Supply Voltage | B : 2.8V, C : 2.85V, E : 3.0V, F : 3.3V, H : 5.0V |
|---|---|

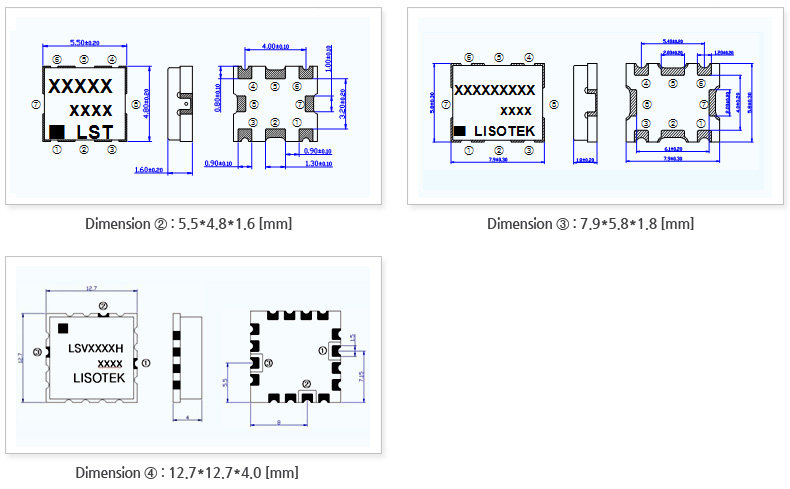

| Size | A : 5.5 x 4.8 x 1.6mm, C : 7.9 x 5.8 x 1.8mm, E : 12.7 x 12.7 x 2.5mm |
| PLL IC | S : Standard, M : Modulation |
Specifications
| Part Number | Supply Voltage | Frequency Range | Size |
|---|---|---|---|
| LSVxxxxXAX | 2.7V ~ 5.0V | 0V ~ 4.7V | 300 to 2600MHz |
| LSVxxxxXCX | 2.7V ~ 5.0V | 0V ~ 4.7V | 10 to 3600MHz |
| LSVxxxxXEX | 2.7V ~ 15V | 0V ~ 15V | 10 to 6000MHz |
( Pb-Free Products Available )
